Product Description
USE AND CHARACTERISTICS：
The machine is mainly used for completely or partly broken cutting of sliced materials,such as PVC plastic electronic foamed cotton, label paster,
rubber and other electronic materials.
1. The specially designed lower cutting and positioning mechanism with the precisionof ± 0.02mm can be used for partly broken cutting, with
the micro adjustment precision of 0.01mm.
2. It is equipped with imported stainle ss steel sheet with the hardne ss of HRC60° so as to guarantee the perfect effect of partly broken cutting.
3. Precise feeding and position alignment has a precision of ±0.03mm.
4. It is provided with protective cover and safety electric eye protective device
Parameter：
|
Model number
|
XCLP3-400M
|
XCLP3-600M
|
|
Maximum momentum
|
400KN
|
600KN
|
|
Stroke range
|
45-175mm 30-130mm
|
45-175mm 30-130mm
|
|
Effective cutting area
|
550x550mm
|
600x550mm
|
|
Engine power
|
3kw
|
3kw
|

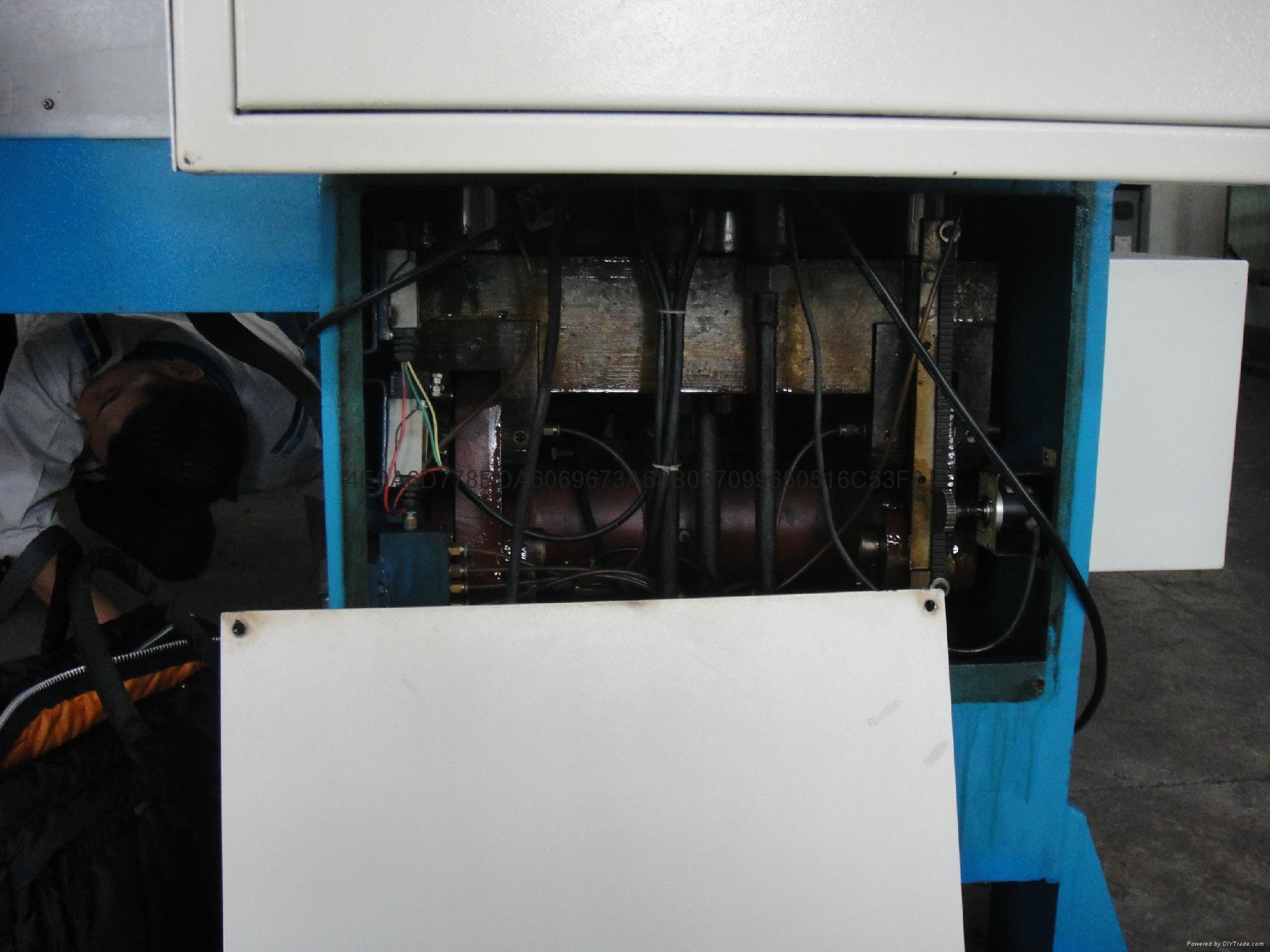

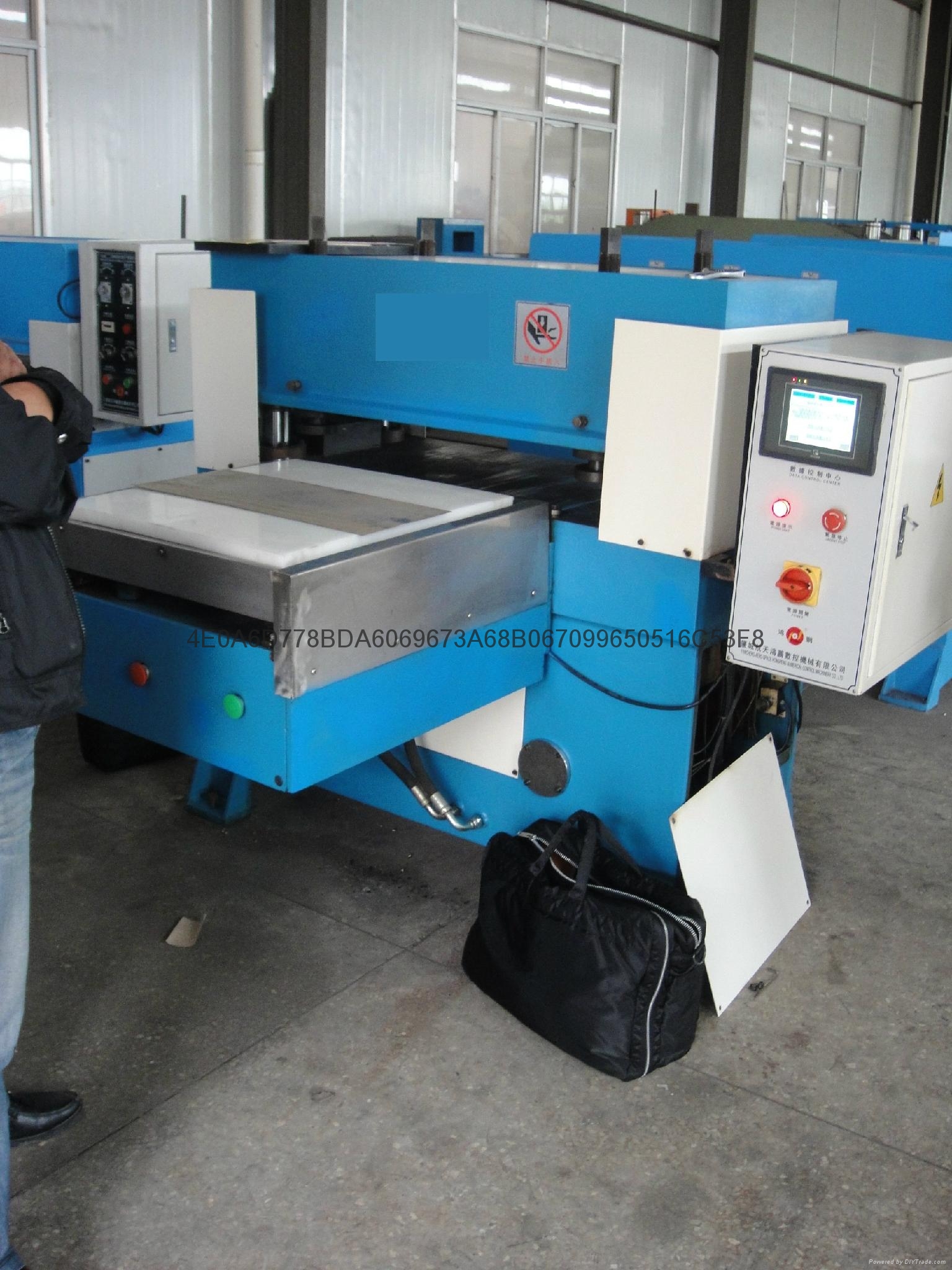

Product Image
